JM-0812 細骨雙拖鉤
型號 :
2JM-0814
不鏽鋼 雙拖鉤
2JM-0812

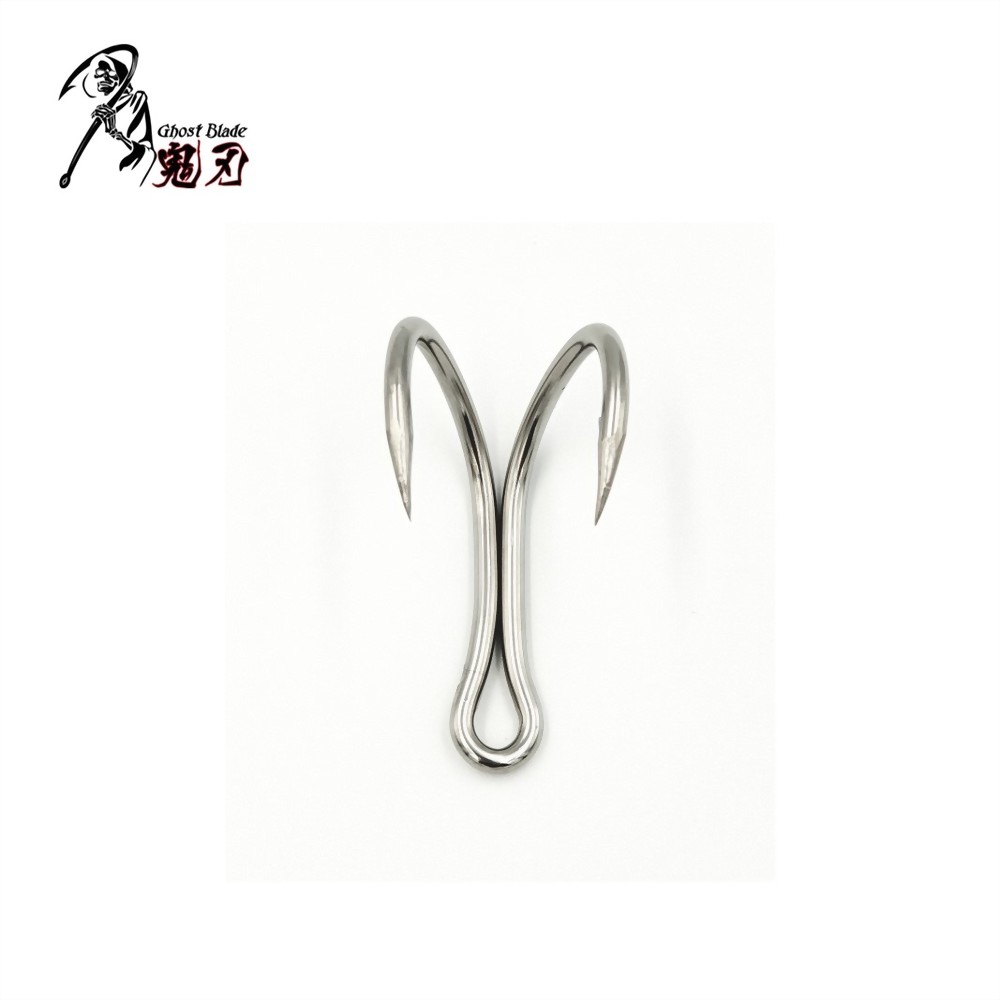

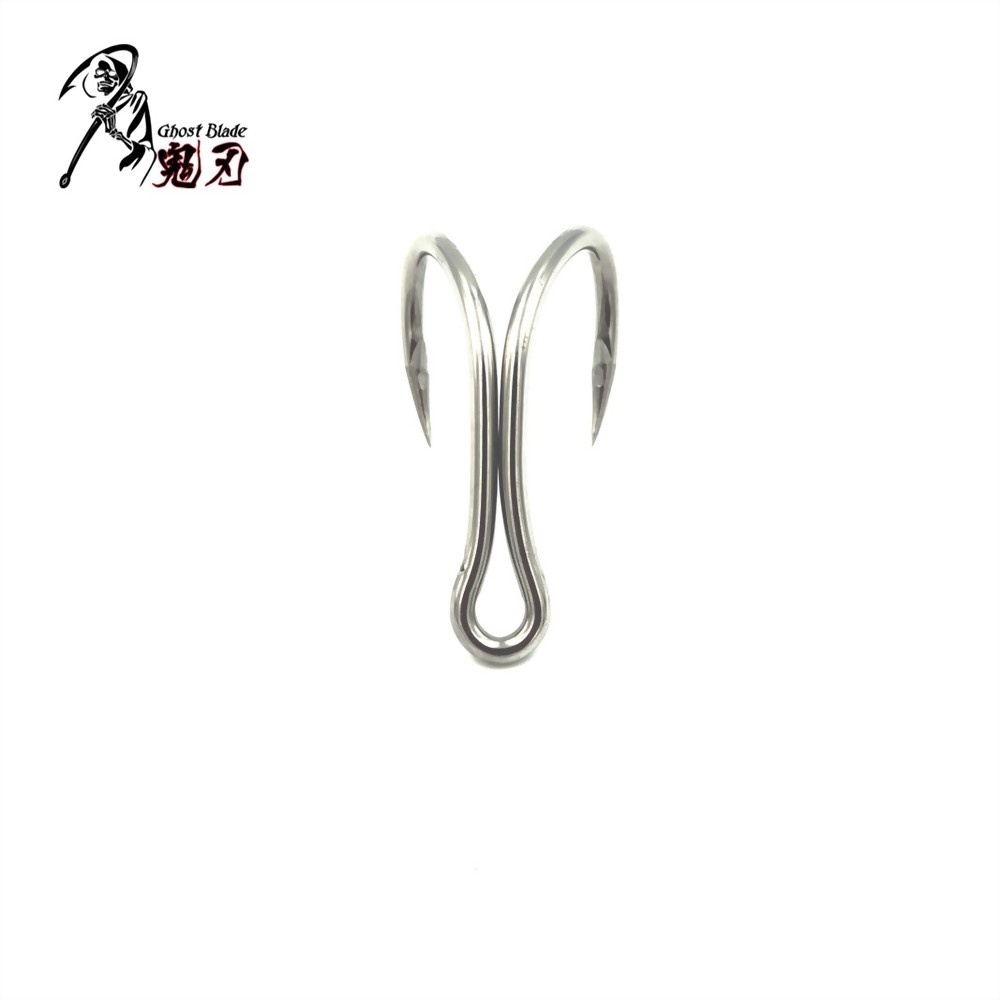

JM-0814 Double Hook
Size: #1/0 #1 #2 #3 #3.5 #4 #5 #6 #7
Material: Stainless Steel

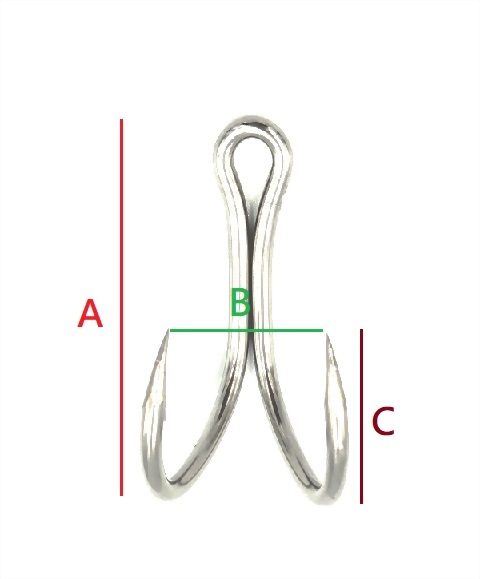

SPECIFICATION:
|
SIZE |
Wire Diameter |
A |
B |
C |
|
|
#1/0 |
3.2m/m |
57.5 |
32 |
33 |
|
|
#1 |
3.0m/m |
52.5 |
29.5 |
30 |
|
|
#2 |
2.8m/m |
50 |
28 |
28.7 |
|
|
#3 |
2.5m/m |
48.5 |
26.5 |
27.8 |
|
|
#3.5 |
2.3m/m |
45 |
25 |
26.2 |
|
|
#4 |
2.3m/m |
42.5 |
24 |
25 |
|
|
#5 |
2.0m/m |
38 |
22 |
22.5 |
|
|
#6 |
2.0m/m |
33 |
18.7 |
19.8 |
|
|
#7 |
1.8m/m |
28 |
15 |
16 |
|
單位：m/m
*高強度不鏽鋼素材*
1.高抗鹽霧侵蝕,使用時效拉長
2.高強度不鏽鋼素材,高拉力
