加長型管付鉤
型號 :
1JM-0711
不鏽鋼 加長型管付鉤
1JM-0711
O’Shaughnessy Hook
Size: #1 #1/0 #2/0 #3/0 #4/0 #5/0 #6/0 #7/0 #8/0
Material: Stainless Steel

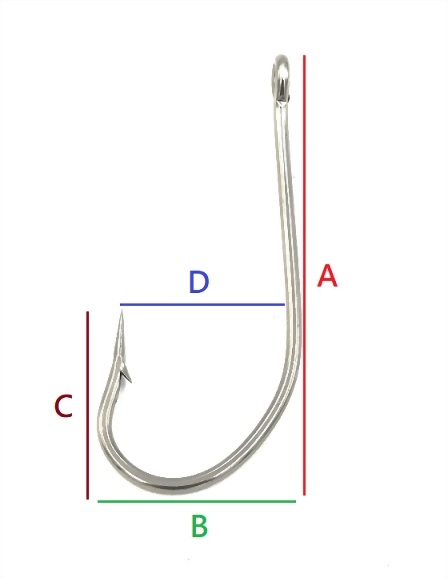

SPECIFICATION:
|
SIZE |
Wire Diameter |
A |
B |
C |
D |
|
#1 |
1.1m/m |
26.7 |
14 |
11.7 |
10 |
|
#1/0 |
1.3m/m |
31.6 |
16 |
14 |
12 |
|
#2/0 |
1.5m/m |
37 |
19 |
16 |
14 |
|
#3/0 |
1.5m/m |
39.5 |
21 |
17.2 |
15.5 |
|
#4/0 |
1.7m/m |
42.8 |
22 |
18.5 |
16.5 |
|
#5/0 |
1.8m/m |
48 |
24 |
21 |
18.4 |
|
#6/0 |
2.0m/m |
53.7 |
27 |
23 |
20.5 |
|
#7/0 |
2.0m/m |
58.5 |
29 |
25 |
22.5 |
|
#8/0 |
2.3m/m |
64 |
32 |
28 |
24.5 |
單位：m/m
*高強度不鏽鋼素材*
1.高抗鹽霧侵蝕,使用時效拉長
2.高強度不鏽鋼素材,高拉力
